Model DCSS Straight Side Press

product image

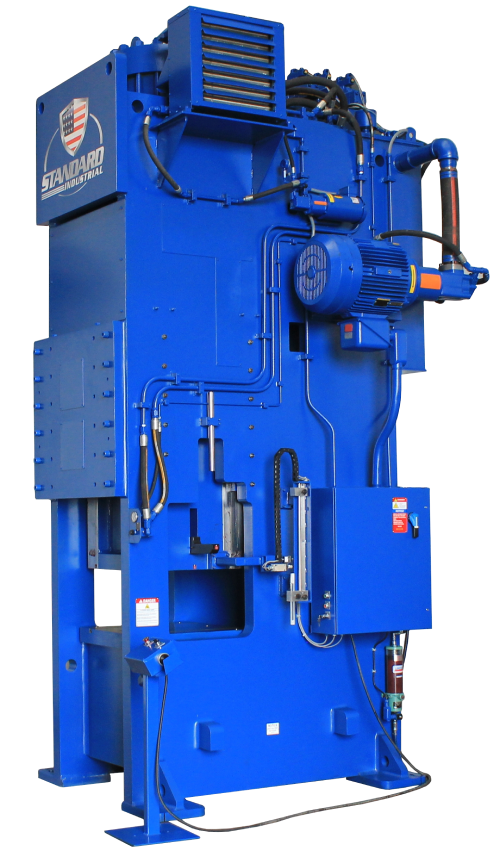

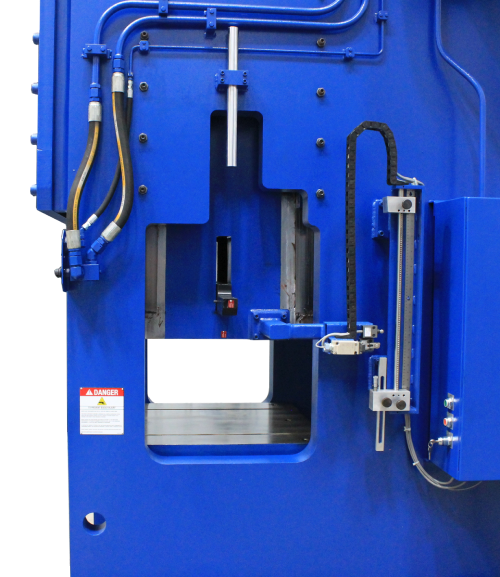

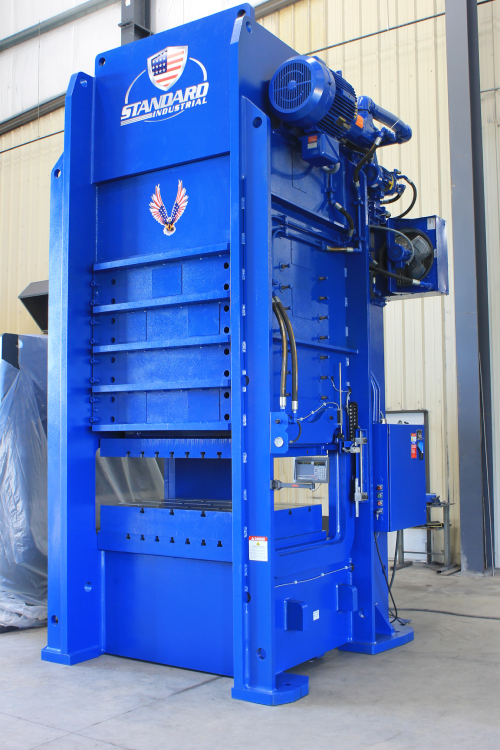

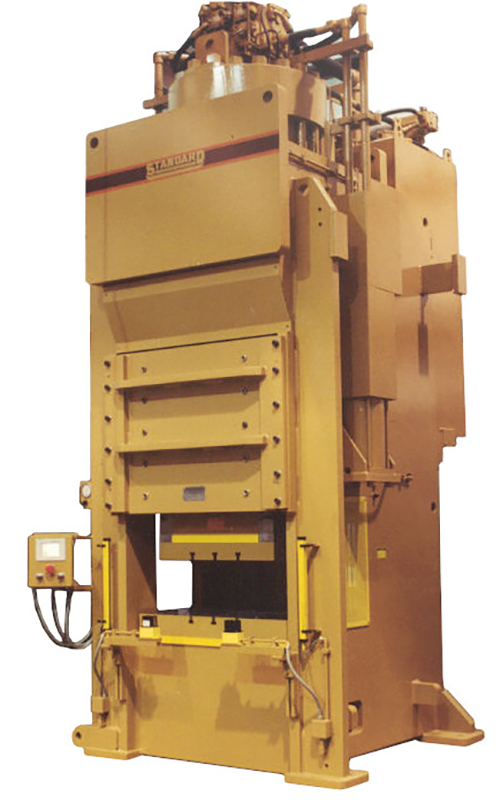

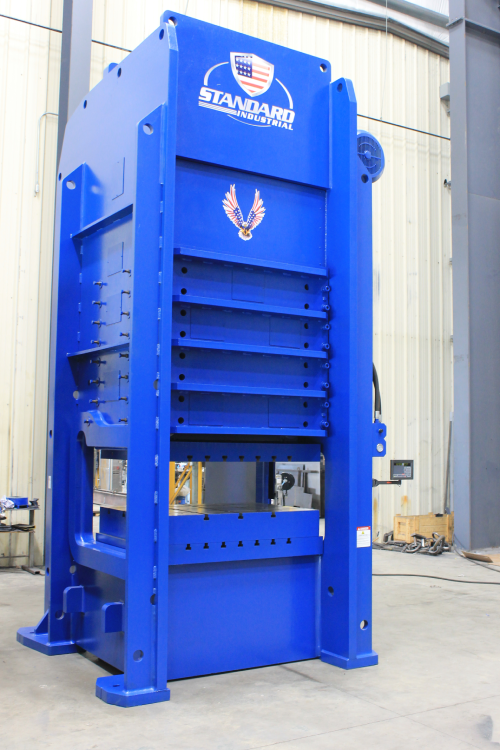

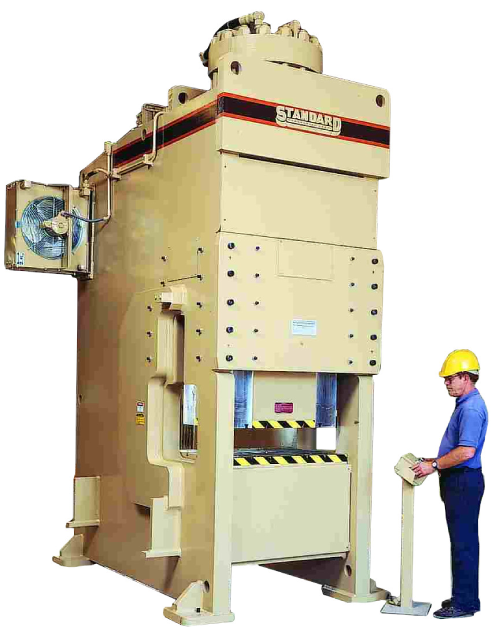

Dcss500 2 Dcss400 Blue Dcss400 Bed Shot Dcss500 6 Dcss500 Bed Dcss500 Dcss700

The model DCSS is the pinnacle of the straight side press configuration, there simply is no design that is more heavy duty. Built similarly to the DC style press, the DCSS takes yet another step toward providing the most frame strength available on any press on the market. The DCSS has enclosed end frames in lieu of the gap therefore allowing the least amount of deflection and the most rigidity. The operator can still however have material or die pass through with windows located in the end frames. Built with the same hydraulic system and solid welded construction as the DC, the DCSS gives you another layer of strength for even the most punishing applications. Typically the bed and ram would stay within the frames, but optionally you can order the DCSS with ram and/or bed extensions to extend beyond the frames to give you even more die area.

The DCSS is also available up to 1,000 tons and is perfect for center load and off center loads left to right and /or front to back as well as virtually any other press application. A hydraulic press of this type offers full tonnage throughout the stroke and 3 ram speeds (fast approach, slow press and fast return). This is useful for a variety of work such as forming, punching, drawing plus any other even tonnage application. With exceptional speeds and bed sizes as well long stroke and open height, you will find the base machine to fit most customer requirements.

100% made in the USA with our unmatched 5 year parts warranty plus a lifetime of readily available parts all from your local suppliers. You will never have another "orphaned" machine due to an overseas manufacturer who can’t get you parts or a domestic manufacturer with proprietary parts that forces you to buy everything from them. With Standard Industrial you will always be able to get the part you need for the lifetime of the machine from any number of sources available to you.

All Model Press Available Options



CUSTOMIZATION

We welcome requests for customization of any of our machines. Many aspects of all machines can be contoured to match your requirements.





HYDRAULIC SYSTEMS

We offer conventional and proportional hydraulic systems engineered to your requirements.





START UP/TRAINING

Onsite training at the customer’s facility is available optionally. Due to the simplicity of the operation of our base model presses, onsite training is rarely needed. Onsite training is included with the purchase of the optional PLC ram control. Please note that all machines must be fully installed, rigged in place, leveled/bolted down, oil in reservoir and hooked up electrically prior to the arrival of the technician.





EXTENDED WARRANTY SERVICE

This package includes all the features of our standard warranty plus:

  • A 7 year parts in lieu of standard 5 year parts warranty





T-SLOT CONFIGURATION

(NOTE) (2) 5/8” t-slots are standard on all presses in the bed and ram (running left to right)

T-slots sizes are available in 5/8”, 3/4” or 1” T-slots in the bed and/or ram. Special T-slot sizes are available









LUBRICATION SYSTEMS:

Manifold Lubrication System

Brings all lubrication points to one area.



Automatic Lubrication System

Automatically lubricates machine with EP-1 grease. Includes warning light when oil is low & auto-shutoff







SAFETY:

Hand/Foot Safety Sequence with Footswitch

Allows operator to use (2) hand pedestal control until “slow down” speed at which time the footswitch can used for remainder of stroke.



Light Curtain Safety Barrier

Infra-Red light curtain across front of press that stops operation of machine if light curtain is broken. Blanking with programmability included by request.



Interlocking Side barriers

Physical barriers for protecting operator that shut the machine down if removed. Can be alone or used in conjunction with light curtains



Additional Control Stations and/or Pedestals

NOTE: (1) Palm button station is included with all presses.

Palm buttons can be mounted to bed/ram or additional pedestals on floor for multiple operators



Gear Lock Safety Systems

Interlocking mechanical gear system that provides physical stops to prevent ram

dropping.







OPERATIONAL PREFERENCES:

Pressure Reversal of Ram

Allows the ram to return to top of stroke once a pre-set pressure/tonnage is achieved.



Auto Cycle Remote

Allows ram to stoke automatically without operator actuation. NOTE: requires safety barrier or light curtain.



Dwell Under Tonnage

Allows machine to “dwell” with required tonnage for a predetermined amount of time.



Coil Line Processing and Material Feed Equipment

We work with providers of process lines and feeding equipment for all levels of production.







STROKE DAMPENERS

When additional punching capacity is required, this feature helps get more punching tonnage without shocking the hydraulic system









DIE CUSHIONS

Aids in forming processes and for drawing and/or part ejection.































REMOVABLE BED/BOLSTER

Recommended for machines with die cushions to allow access to die cushion for maintenance. Not available with AM/CM models.





RAM CONTROL

As standard the ram travel is controlled via simple mechanical limit switches that control open height, speed change point and the lower limit via a micrometer.







Digital Readout (Non-Programmable)

Shows ram location while using the standard mechanical limit switches















PLC/Programmable Ram Control

Controls base functions of press. Includes onsite training at customer’s facility (contiguous U.S.).

  • Touchscreen display
  • 200 programmable jobs
  • Custom features available
  • Onsite training included
  • Controls open height, speed change point and lower limit via precision digital encoder
  • Programmable tonnage
  • Special programming functions to match your needs are available.
  • Mitsubishi PLC is our recommended control but other brand PLC’s can be quoted.











HIGH SPEED HYDRAULIC SYSTEMS:

ADDITIONAL OPEN HEIGHT AND/OR ADDITIONAL STROKE

ADDITIONAL THROAT DEPTH (C-FRAME MODELS ONLY)

Note: Stroke options increases overall height and does not automatically increase open height or closed height. Also, extra open height does not automatically increase stroke. All options quoted may increase dimensions/weight of machine.







OTHER OPTIONS AVAILABLE:

  • Safety equipment to user specification
  • Special machining
  • Special platens
  • Air counterbalance
  • Special electrics
  • Bed/Ram customization
  • UL/CSA and other certifications—As standard all components are UL508A compliant
  • Special single paint color
  • Other options available per customer request
  • Scrap chutes and knockouts
